Description

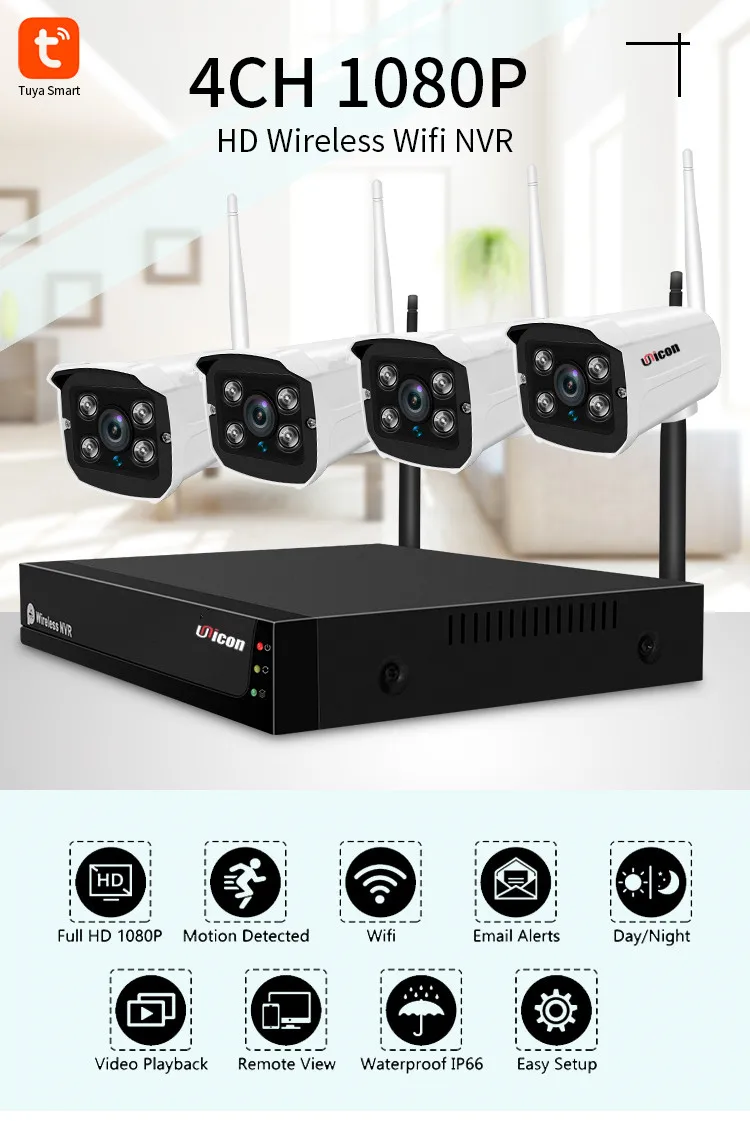

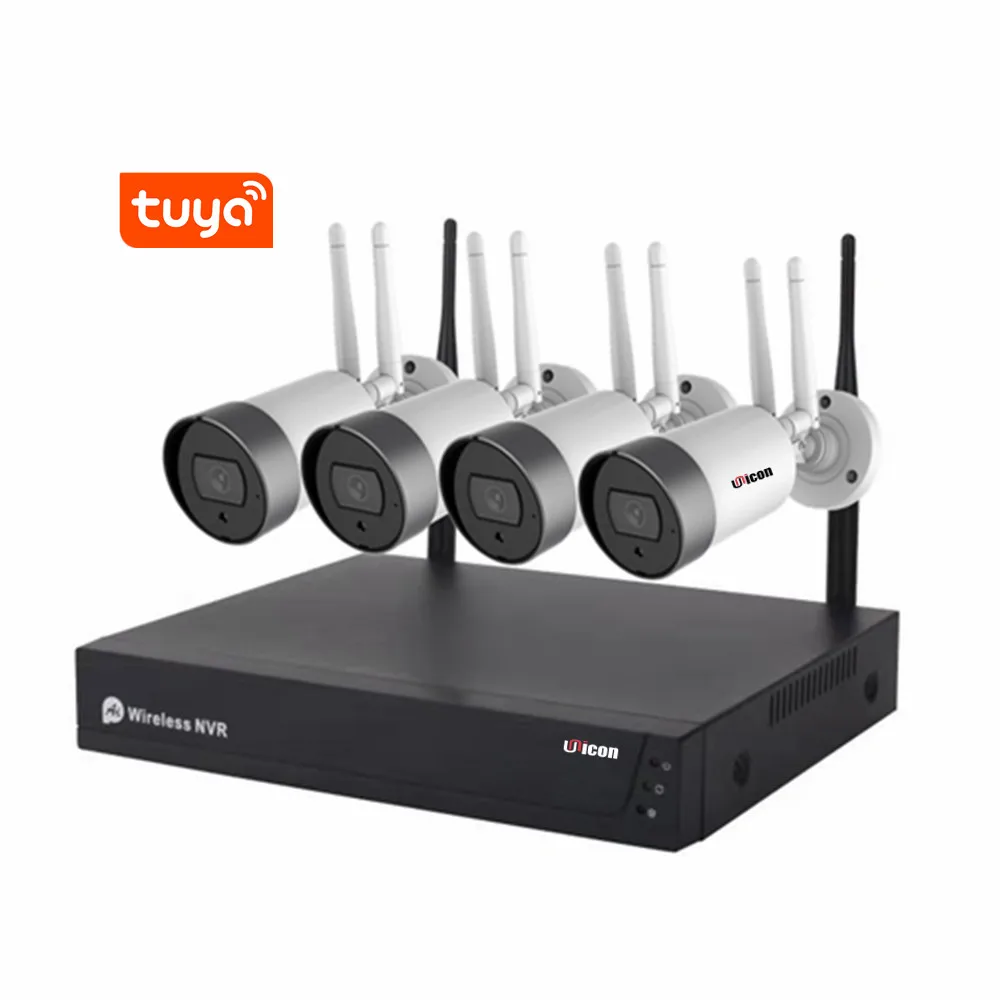

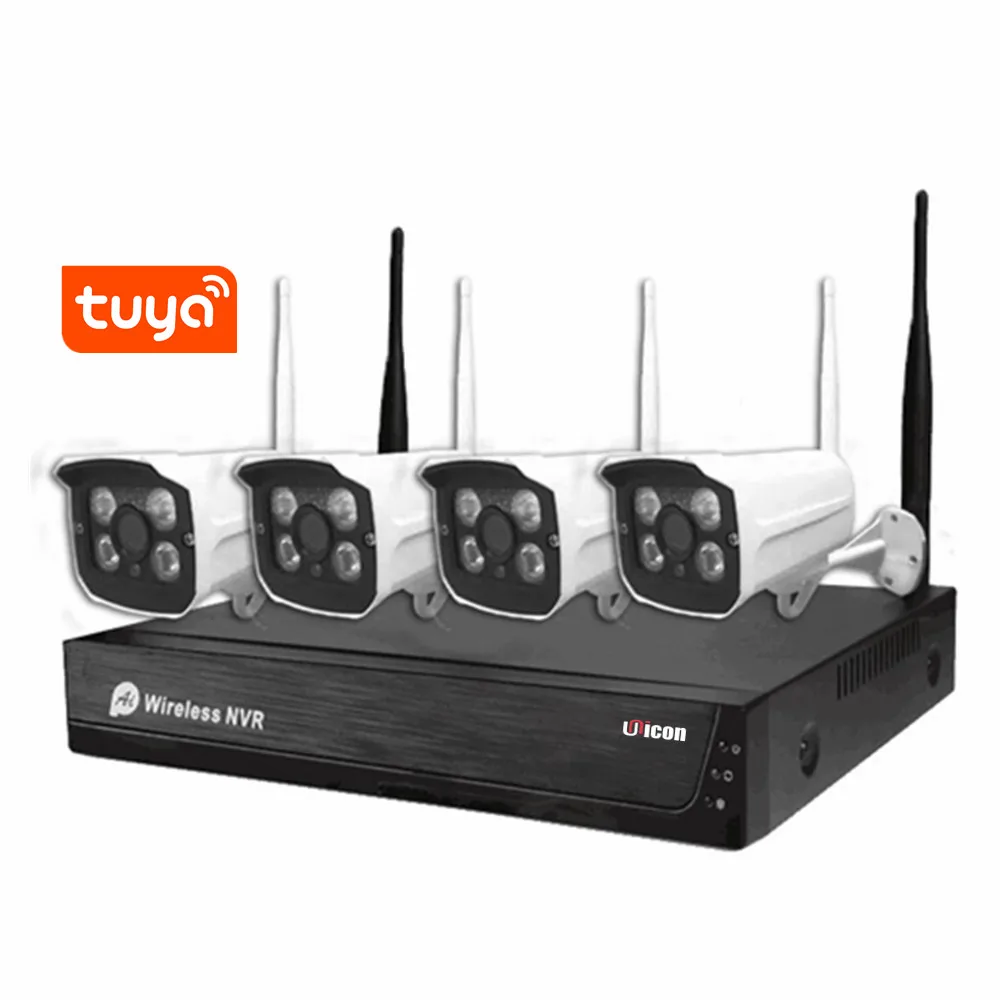

Tuya Smart Video Surveillance CCTV System 8CH 4CH 5MP WiFi Nvr Kit Support Night Vision Two Way Audio
Key Features:

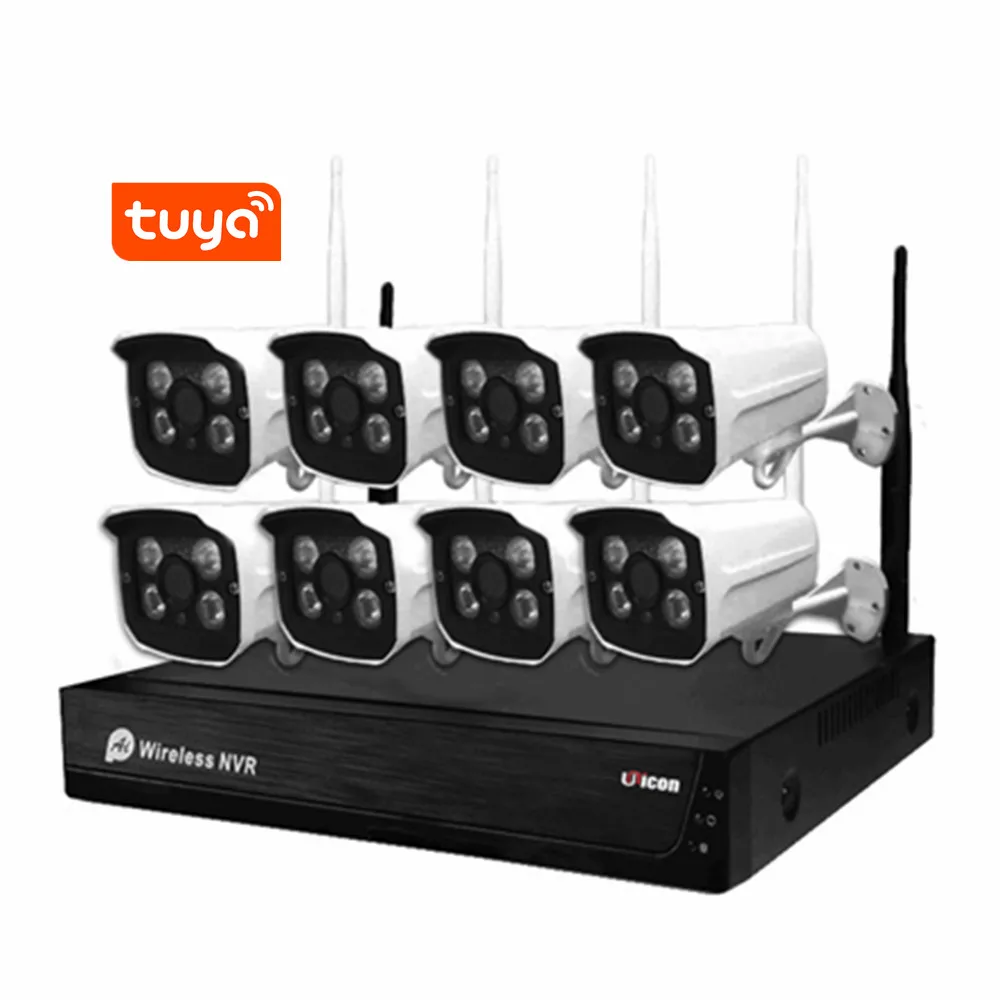

* 8CH 5MP wifi NVR kit
* 802.11b/g/n ;150Mbps;2.4G wireless
* 8CH 1080P@25fps video input and 4CH playback

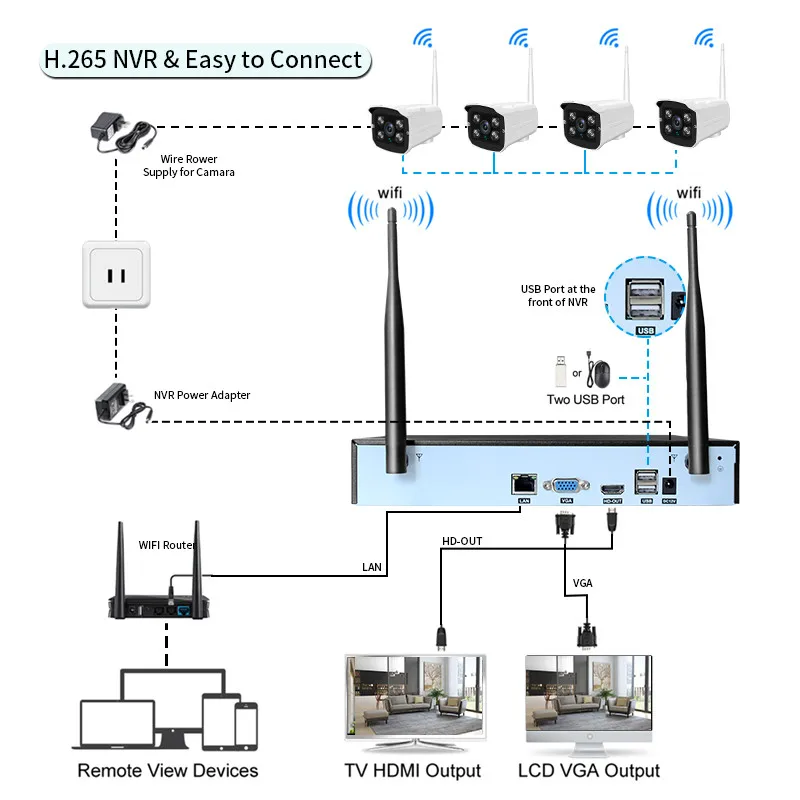

* Support HDMI/VGA;1 SATA max 4T
* Support 1 RJ45;1 USB interface;2 wifi antenna * With 1m reticle*1;Power adaptor(1m cord)*5;Mouse*1
* With 8pcs 1080P IR bullet cameras fixed lens 3.6mm
* 8pcs IR array IR distance 20m
Specification :
|
Model |
Wifi NVR |
|
Operating System |
Embedded Linux OS |
|
AV(video)input |
|
|
Network Video |
4CH |
|
Network video input broad bank |
10Mbps |
|
AV (video) output |
|
|
HDMI input |
1ch,resolution:1024×768,1366×768,1440×900,1920x1080p |
|
VGA output |
1ch,resolution:1024×768,1366×768,1440×900,1920x1080p |
|
AV CODEC Specification |
|
|
Video Resolution |
5MP |
|
synch-playback |
4CH |
|
Video Control |
|
|
Video/Capture mode |
Manual,Time,Motion,Alarm |
|
Playback mode |
Real time,Routine,Event |
|
Backup |
USB backup |
|
Alarm |
|
|
Alarm Input |
4ch (optional) |
|
Alarm Output |
1ch (optional) |
|
Hard Disk |
|
|
Type |
1*SATA interface |
|
Max Capacity |
4 TB at most for each |
|
External Interface |
|
|
Network Interface |
1 adaptable RJ45 10M/100M, 1 WIFI interface |
|
USB Interface |
2 USB 2.0 |
|
Network Control |
|
|
Protocol |
UPnP (play&plug)/SMTP (email survice)/PPPoE (dial-up) |
|
Others |
|
|
Power Supply |
DC12V3A |
|
Power Consumption (W) |
≤5W(Without HDD) |
|
Operate Temperature (°C) |
-10℃~+55℃ |
|
Working Humidity (%) RH |
10%~90% |
|
Size |
257mm(W)×210mm(V)×45mm(H) |
|
Weight(excluding HDD) |
≤1Kg |
|

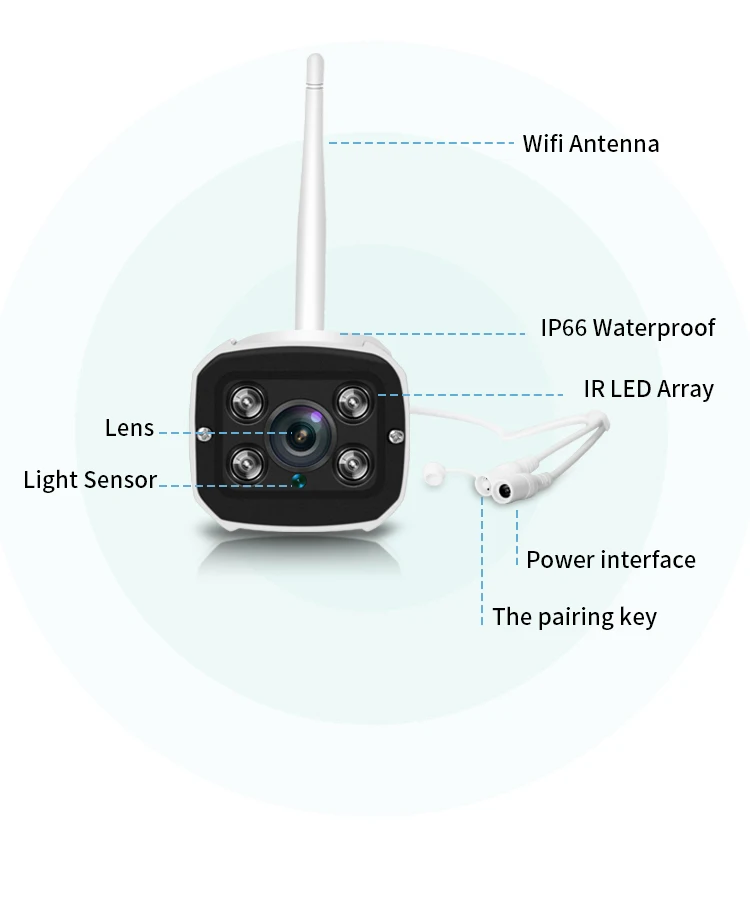

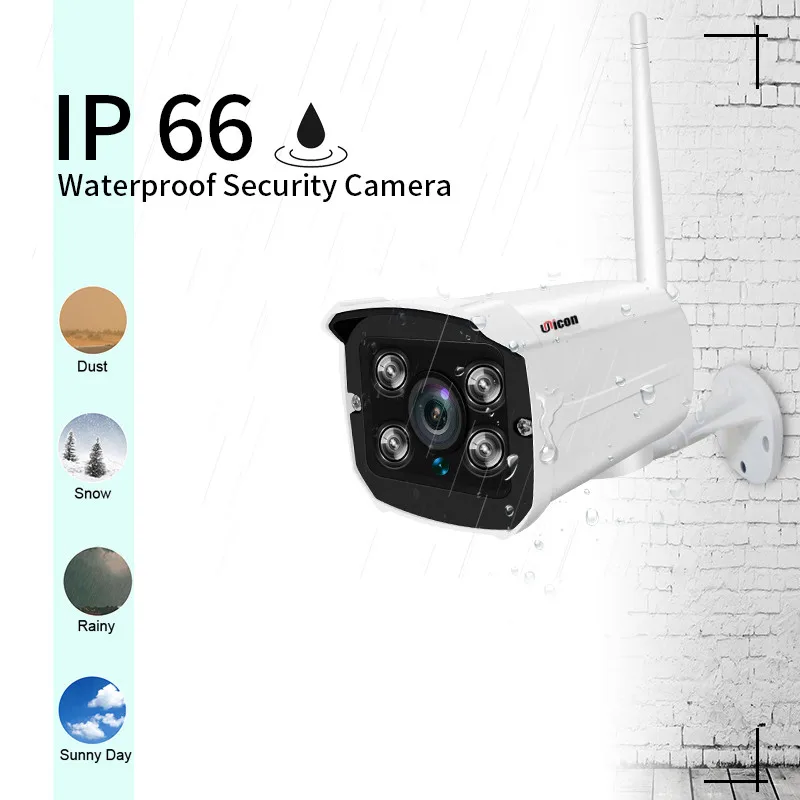

Model |
Wifi Camera |
|
Technical Parameters |
|
|
Sensor |
1/4” Progressive Scan Sensor |
|
Signal System |
PAL/NTSC |
|
Resolution |
5MP 16 : 9 High Defination |
|
Minimum illumination |
Color: 0.1 Lux; B/W: 0.01 Lux |
|
Shutter |
1/25s to 1/25,000s |
|
Lens |
3.6/4/6mm (optional) |
|
OSD |
Date Time & Title |
|
White Balance |
Auto |
|
Day&Night |
Auto / Color / BW |
|
3D-DNR |
Auto |
|
Mirror/Flip |
On / Off |
|
Frame Specification |
Three Streaming at the Same Time: |
|
S/N |
> 39.1 Db |
|
Interface |
RJ45 / WIFI 802.11b/g/n |
|
General Specification |
|
|
Anti-thunder Level |
Standard IEC61000-4-5 |
|
Ambient Temperature/Humidity |
-10℃ to +50℃ / 30% to 80% RH |
