Description
- AI Functions: Human Detection
- Shell Material: Metal
- Color Night Vision: no
- Operating Temperature: -10°-60°
- IP Rating: IP66
- App name: other
- Power Mode: Mains Electricity
- Rechargeable Battery Capability: other
- Rechargeable Battery: none
- Scene: Indoor and outdoor
- Movement Range(Tilt): -10°-180°
- Movement Range(Pan): -10°-180°
- Digital Zoom: other
- Optical Zoom: none
- Megapixels: 5MP
- TF Card: None
- Power Supply: With POE
- Storage: None
- Installation: Ceiling
- Color: WHITE
- is_customized: No
- Audio Output: App. and Reolink Client
- Minimum Illumination(Lux): 0
- Viewing Angle : 80°
- Video Compression Format: H.264
- IR Distance(m): 30 meters (100ft) (LED: 18pcs/14mil/850nm)
- Dimensions (L x W x D)(mm): 120 *77mm
- Power Supply(V): PoE(48V, Standard 802.3af)
- Alarm Action: FTP Photo,Email Photo
- Power Consumption(W): 5.5W
- Supported Mobile Systems: IOS,Android
- Sensor Brand: SmartSens
- Special Features: Waterproof / Weatherproof
- Sensor: CMOS
- Model Number: RLC-520A
- Supported Operating Systems: Windows 10,Windows 8,Windows 7,Mac OS
- Lens (mm): 4mm
- Connectivity: IP/Network Wired
- High Definition: 5.0 Megapixels
- Style: Dome Camera
- Brand Name: Reolink
- Origin: Mainland China
- Certification: CE,FCC,RoHS
- Smart home platform: Google Assistant
- Video Compression: H.264
- Resolution: 2560*1920(5MP)
- Lens: f=4.0mm Fixed, F=2.0
- Frame Rate: Main Stream@25fps, Sub Stream@6fps
- Audio Input: Built-in Microphone
- Browser Live View: IE, Edge, Chrome, Firefox, Safari
- Power Supply: PoE (IEEE802.3af,48V) or DC12V(no power adapter)
- Recording Device: Reolink Client, Blue Iris, Synology, Qnap
- Phone App.: Android Phone, iPhone
- Net Connection Server: P2P, Plug and Play
- Google assistance: Yes
- 3rd party software: Synology, QNAP, Blue Iris, iSpy
- Field of View: Horizontal: 80° Vertical: 42°
- Day & Night: Auto-switching with IR-cut filter
- Night Vision: 30 meters (100ft) (LED: 18pcs/14mil/850nm)
- PoE: IEEE 802.3af, 48V Active
- Smart Alarm: Motion detection/Person detection/Vehicle detection
- Record Mode: Motion-triggered recording (default); scheduled recording; 24/7 recording
- Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
- Maximal User Access: 20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
- Temperature: Operating temperature: -10°C ~ +55°C (14°F ~ 131°F)
- Humidity: Operating humidity: 10% ~ 90%
- Dimension: 105*95mm
- Weight: 467.5g
- Limited Warranty: 2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/
- App Name: Reolink
Videos Clear, 5MP Super HD
Compared with 1080p cameras, RLC-520A 5MP HD security camera not only has better clarity but also better color purity and balance, in the aesthetic sense. 1/2.7" CMOS Sensor, 4mm lens and 2560 x 1920 resolution(5MP) play the trick.
Up to 30m night vision
18pcs infrared LEDs and advanced IR technology make Reolink RLC-520A have a long night vision distance up to 100 feet, letting you see any event clearly and accurately identify people present even in the dark.
Use RLC-520A to Get Smart Person/Vehicle Alerts
Powered by smart motion detection technology, RLC-520A can tell people and vehicles from other objects. Get alerts when suspicious person or car is loitering around your house or store. Protect your property from potential threat.
Motion Detection — Smartest Way for Alerts
Automatically detect moving objects and trigger alerts when dangers occur. Protect your home and business effectively from burglars, intruders and break-ins. When invasion happens without your permission, this camera will send alerts in real time.

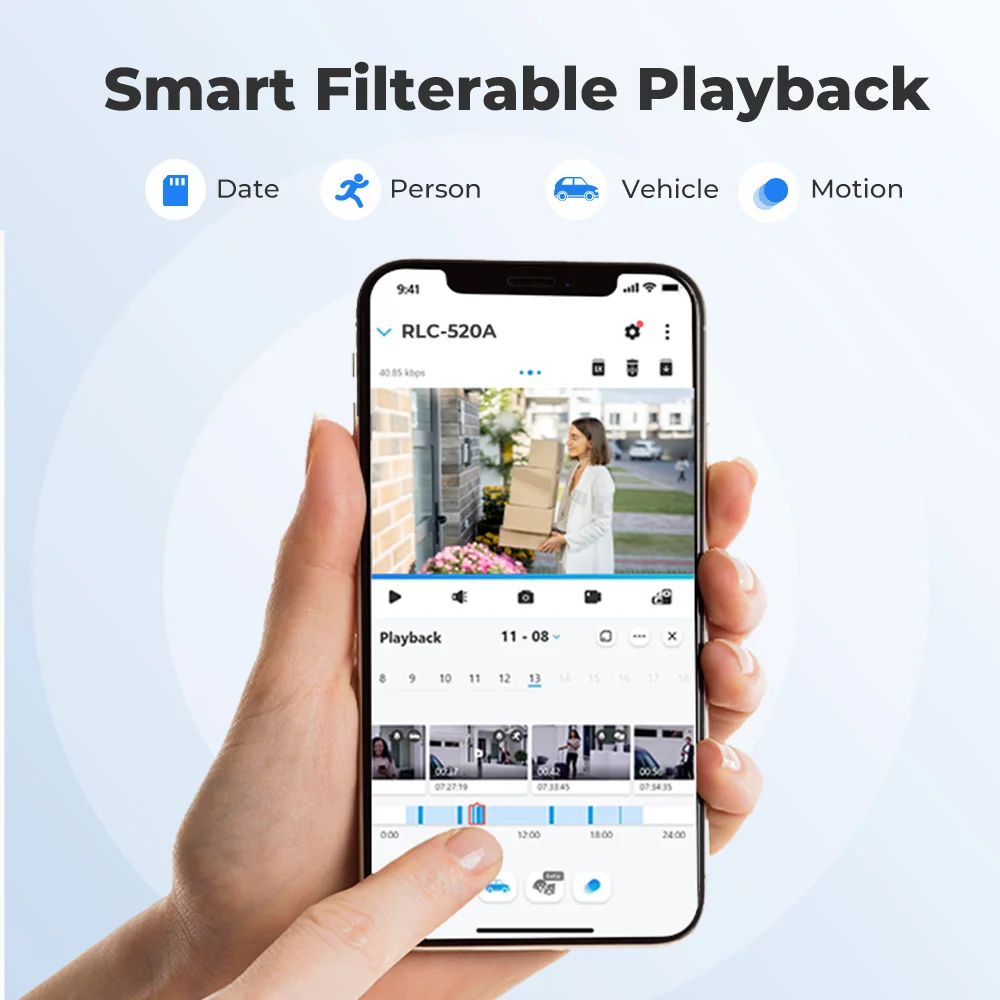

Smart Playback, Easy locate key moment with RLC-520A
With RLC-520A, you could fliter clips by person, vehicle or motion. Finding important video is much easier.
Remote Viewing, Anytime, from Anywhere
Remotely access the ip camera to see live viewing and recordings via free Reolink App on your mobile device, free Reolink Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.).
Set schedule and area as you want!
Create motion schedule and specific areas that you want to receive motion alerts from. It can save you the trouble of unwanted alarms from out of designated areas.
Save all motions in SD card
The SD card will record when motion detection is triggered. The camera supports pre-record and post-record. When the SD card is full, it will automatically cover the old video.

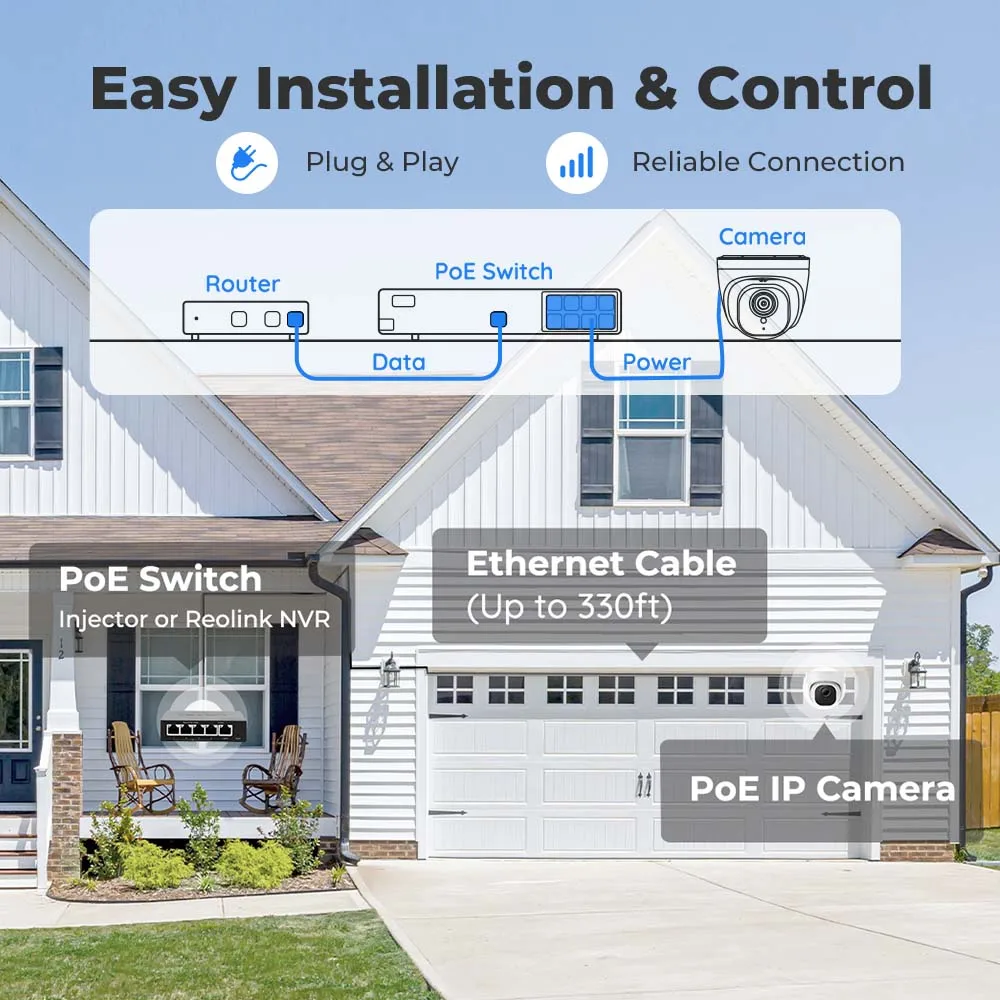

PoE Makes Easier Wiring and Installation
The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission, installation easier! Besides, thanks to PoE you will never worry about electric leaks!
Listen to what's happening around
This 5MP IP camera can pick up audio around and it will give you a clear voice of what's going on at the other side.
A Perfect Waterproof Outdoor Security Camera
With an IP66 waterproof rating, you can feel free to install RLC-520/RLC-520A outdoor, like in your garage, backyard, or anywhere else. It can stand harsh weather conditions, including rain, snow, intense cold and heat.
Time Lapse – See the Day in a Minute with RLC-520A
Use RLC-520A to shoot time-lapse videos. Keep track of your 3D printing, see whole construction process in a few minutes, or capture beautiful views from sunrise to sundown. Easy to use and fun to share with others.
Free Firmware Update
Free Reolink firmware update helps your camera/NVR keep up with the up-to-date features as well as fixing any bugs or glitches.
Work with Google Assistant
It can’t be easier to control a security camera that works with Google Assistant. Just say “Hey Google, show me the backyard” and you will see live feed from the camera on your Google Nest Hub or Chromecast-enabled TVs.
Work with NVR for 24/7 Reliable Recording
If you have multiple IP cameras or if you want 24/7 recording, a Reolink NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.
Q: The poe power came from the nvr or you need and aditional inyector to power the cameras?
A: Hello, you can either PoE powered it via your Reolink PoE NVR or use a 12V1A power adapter to power it.
Q: Will this camera work with rlk16-410b8, including time lapse?
A: yes. However, please notice that when you connect the camera directly to the NVR, it won't be able to use some functions like time lapse and smart home. In that case, we recommend you use it as a stand-alone camera or connect the camera via a PoE switch to the NVR.
Q: Can this camera be viewed via the reolink mobile app without being connected to a nvr ?
A: HI , yes ,it support.
Q: What Ethernet cable lengh? Is it short or do i have to purchase a long one?
A: Hi, it comes with 1Pcs 1m network cable for the initial test. If you actually need a longer installation, you need to prepare separately.
Q: Can the rlc 520A record without internet connection?
A: Yes. After the initial setup with an Internet connection via Reolink App/Client, the camera can record without the Internet. However, under such a situation, you may need to take the SD card out to check the recordings.
Q: What's the Working Environment for Reolink POE Cameras?
A:The POE camear works under the below environment: Operating temperature: -10°C~+55°C (14°F~131°F)
Operating Humidity: 10%~90%
Q: Hi,Yes, it is Onvif 2.1 compliant
A: Is this camera onvif compliant/compatible? if so, which protocol?
Q: How does the time lapse work with android app?
Can I set it to time lapse say for 12 hrs a day, 7 days a week?
Will it record timelapse to nvr or sd card?
A: yes, you can select how long you want the camera to capture before it automatically finishes,
the captures will be stored on the SD card.
For detailed setting steps, please refer to this link: https://support.reolink.com/hc/en-us/articles/900002834583
|
Model |
RLC-520A |
|
Image Sensor |
1/2.7" CMOSsensor |
|
Video Resolution |
Default: 2560 x 1920 (5MP) at 30 frames/sec |
|
Lens |
f=4.0mm fixed; F=2.0, with IR-cut filter |
|
Video Format |
H.264 |
|
Field of View |
Horizontal: 80° |
|
Vertical: 42° |
|
|
Day & Night |
Auto-switching with IR-cut filter |
|
Night Vision |
30 meters (100ft) (LED: 18pcs/14mil/850nm) |
|
Audio |
Audio recording |
|
PoE |
IEEE 802.3af, 48V Active |
|
DC Power |
DC 12.0V⎓1A, <12W |
|
Power |
DC power port |
|
System |
Reset button |
|
Ethernet |
One 10M/100Mbps; RJ45 |
|
Storage |
MicroSD card slot (Max. 256GB) |
|
Audio |
Built-in microphone |
|
Frame Rate |
Mainstream: 2fps – 30fps (default: 30fps) |
|
Substream: 4fps – 15fps (default: 10fps) |
|
|
Code Rate |
Mainstream: 1024Kbps -8192Kbps (default: 6144Kbps) |
|
Substream: 64Kbps – 512Kbps (default: 256Kbps) |
|
|
Browser Supported |
Edge, Chrome, Firefox, Safari |
|
OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
|
Smart Alarm |
Motion detection/Person detection/Vehicle detection |
|
Record Mode |
Motion-triggered recording (default); scheduled recording; 24/7 recording |
|
Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
|
Maximal User Access |
20 users (1 admin account & 19 user accounts); support up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
|
Smart Home |
Google Assistant |
|
Temperature |
Operating temperature: -10°C ~ +55°C (14°F ~ 131°F) |
|
Humidity |
Operating humidity: 10% ~ 90% |
|
Waterproof |
IP66 |
|
Dimension |
Φ105*95mm |
|
Weight |
467.5g |
|
Limited Warranty |
2-year limited warranty. For support, visit https://support.reolink.com/hc/en-us/ |
