Description
- State of Assembly: Ready-to-Go
- Gyro: None
- Scale: 1:8
- Model Number: ZigBee
- Max Speed: None
- Features: SOLAR
- Control Channels: 3.5 Channels
- Brand Name: orvibo
- Certification: CE
- Origin: Mainland China
- Name: Orvibo
- Features: Remote Control

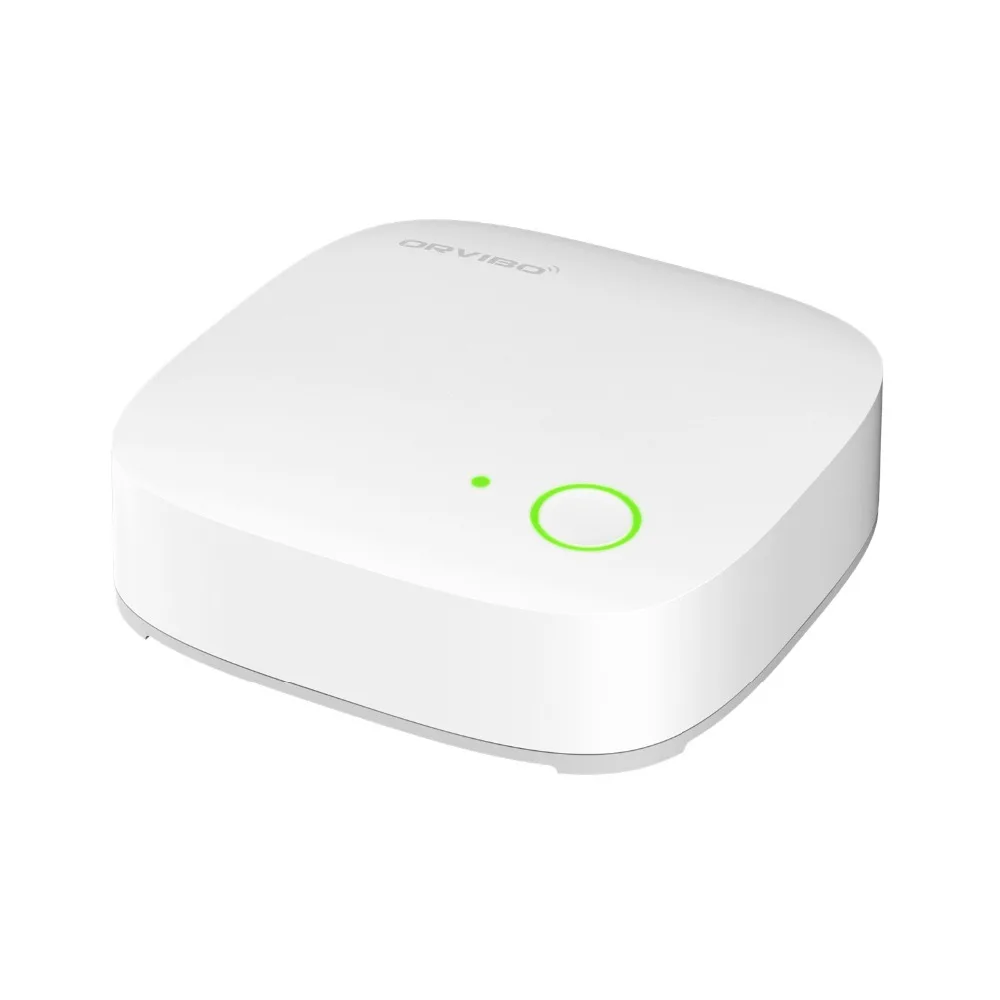

ZigBee Smart Hub
Overview
Create your own Smart Home network with the Zigbee Smart Hub through the Internet and allows you to control, monitor and maximize efficiency for over 100 different devices that use our ZigBee based outlets, switches, dimmers, light bulbs and security products.
Features
ZigBee is the wireless language that everyday devices use to connect to one another, it harnesses the power of the mesh to connect every product to every other product. So if one of your products fails, the others will continue to communicate without interruption. ZigBee is stable and reliable.
Automatically search ZigBee devices and automatic networking. With ‘Simple Connect’ technology developed by ORVIBO, smart hub can automatically search other ZigBee devices and access them to the ZigBee network without complicated network configuration or code pairing.
Support two-way feedback in real time. Users know the status of lights, curtains, windows, doors and sensors in real time.
Specification
Model No.: VS10ZW
Size: 88*90*27mm(L*W*H)
Power supply: 5V/1A
ZigBee spec
Communication protocol: ZigBee HA
Networking mode: ZigBee automatic networking
Wireless standard: IEEE 802.15.4
Working Frequency:2.4GHz
Working Channel:11,14,15,19,20,24,25
Modulation mode: OQPSK
Encryption: AES128
Communication rate: 250Kbps
Wireless transmitting power: ≤18dBm
Wireless receiving sensitivity: ≥-90dBm

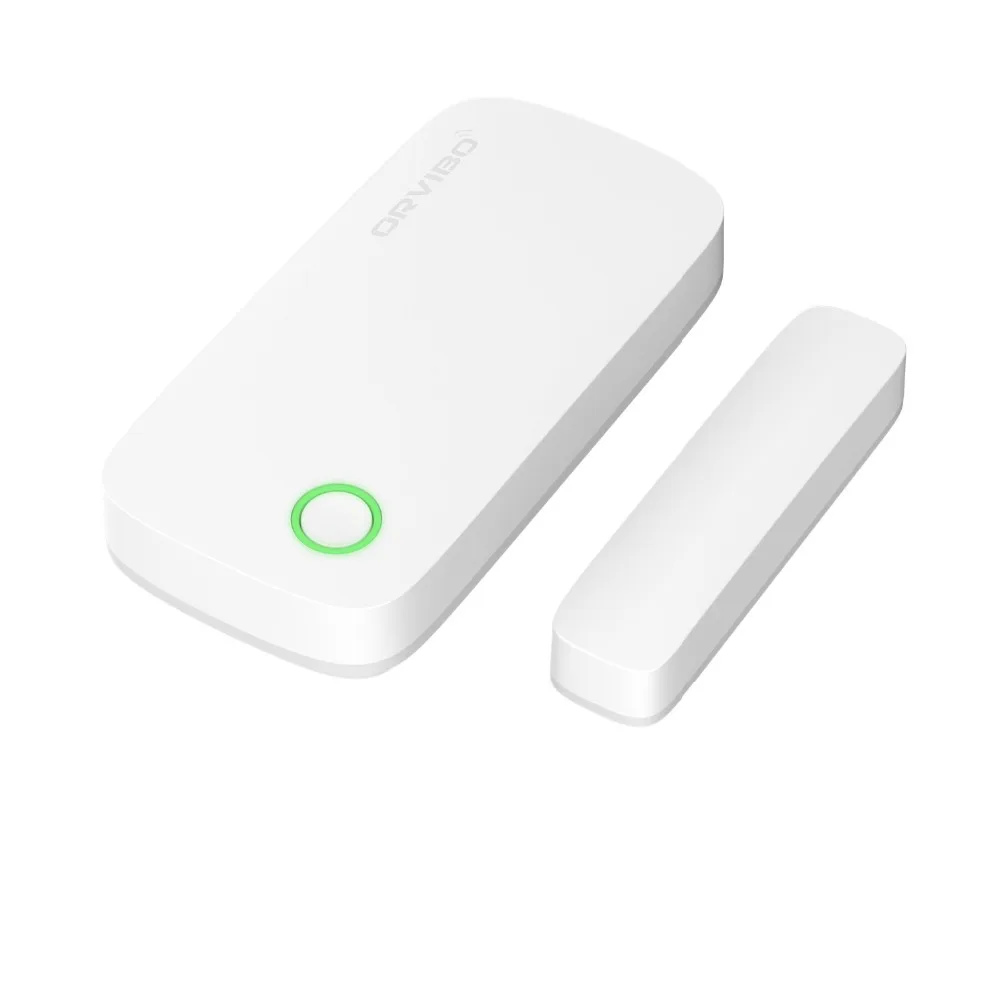

Door & Window Sensor
Overview
Create your own Smart Home security network with this easy to install window or door sensor. No electrician required; this is a typical do-it-yourself installation and affordable for conversion certain windows and doors or focus on certain rooms or the entire home/garage. Get alerted anywhere in the world if doors and windows are opened.Works with ORVIBO Mini Hub.
Features
Powered by ZigBee wireless communication technology; highly reliable and stable,Work with HomeMate App to remind you no matter where you are if someone unwanted break into your house,Synchronize with other ZigBee devices; can realize ’ if you open the door, then turn on lights’ scenes,Ultra low power consumption, the battery can last more than 1 year
Specification
Model:SM10ZW-1CO
Power supply: One CR2302 button battery
Standby current: ≤30µA
Alarm current: ≤25mA
Communication protocol: ZigBee HA
Wireless standard: IEEE 802.15.4
Wireless frequency: 2.4GHz Channels: 11, 14, 15, 19, 20, 24 and 25
Modulation mode: OQPSK
Encryption mode: AES-128
Communication speed: 250 Kbps
Transmission power: ≤4.5dBm
Receiver sensitivity: ≥ -90dBm
Communication distance: 80m (in open area)
Casing material: PC+ABS
Operating environment: -10 – 50°C
Operating humidity: 10% – 90% RH
Transmitter dimensions: 61.5×30.3×11.7mm
Magnet dimensions: 44.8×10.9×7.9mm

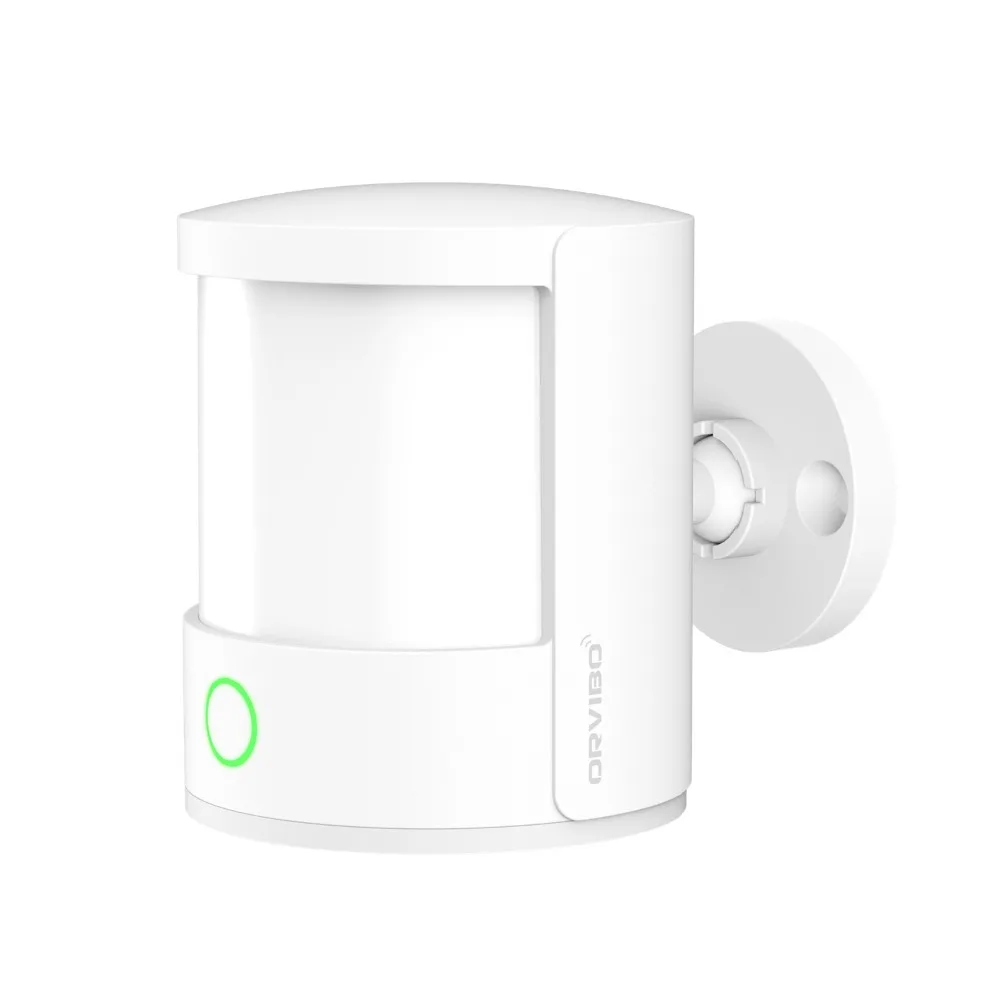

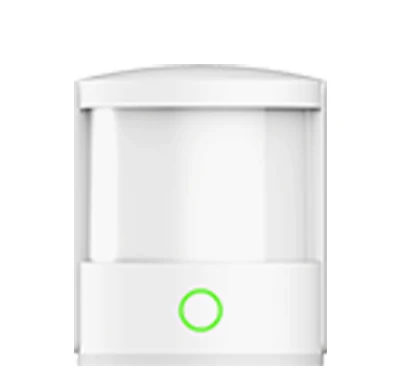

Motion Sensor
Overview
Create your own Smart Home security network with this easy to install motion sensor. No electrician required; this is a typical do-it-yourself installation and affordable for conversion certain windows and doors or focus on certain rooms or the entire home/garage. Get alerted anywhere in the world if someone or something is moving about in your home. Works with ORVIBO Mini Hub.
Features
Work with HomeMate App to remind you no matter where you are if someone unwanted is moving in your house
Specification
Model:SN10ZW-1CO
Power supply: 2 AA batteries
Standby current: ≤50µA
Alarm current: ≤250mA
Communication protocol: ZigBee HA
Wireless standard: IEEE 802.15.4
Wireless frequency: 2.4GHz Channels: 11, 14, 15, 19, 20, 24 and 25
Modulation mode: OQPSK
Encryption mode: AES-128
Communication speed: 250 Kbps
Transmission power: ≤4.5dBm
Receiver sensitivity: ≥ -90dBm
Detection range: ±70 degrees vertically, ±120 degrees horizontally Detection
distance: 7m
Communication distance: 80m (in open area)
Casing material: PC+ABS
Operating environment: -10 – 50°C
Operating humidity: 10% – 90% RH
Transmitter dimensions: 61.5×30.3×11.7mm
Dimension: Ø52.6×63.6mm
