Description
- Package: module
- is_customized: Yes
- Model Number: CH340G SOP-16
- Operating Temperature: normal
- Dissipation Power: low
- Supply Voltage: 3.3V 5V
- Application: Computer
- Condition: New
- Type: Voltage Regulator
- Brand Name: EC Buying
- Origin: Mainland China
- Smart Electronics Experiment: Switch And Sensor For Arduino STM32

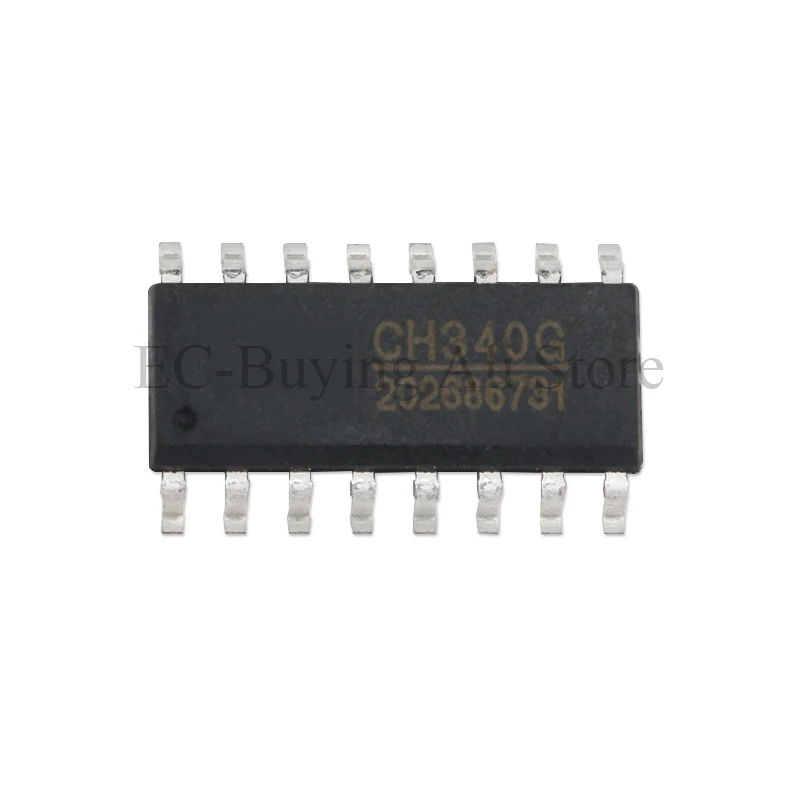

- Other Type: SOP-16 CH340G
Note: SOP-16 CH340G , place an order for the customers who need it, and do not select the ones who don't need it, thank you!
Introduction:

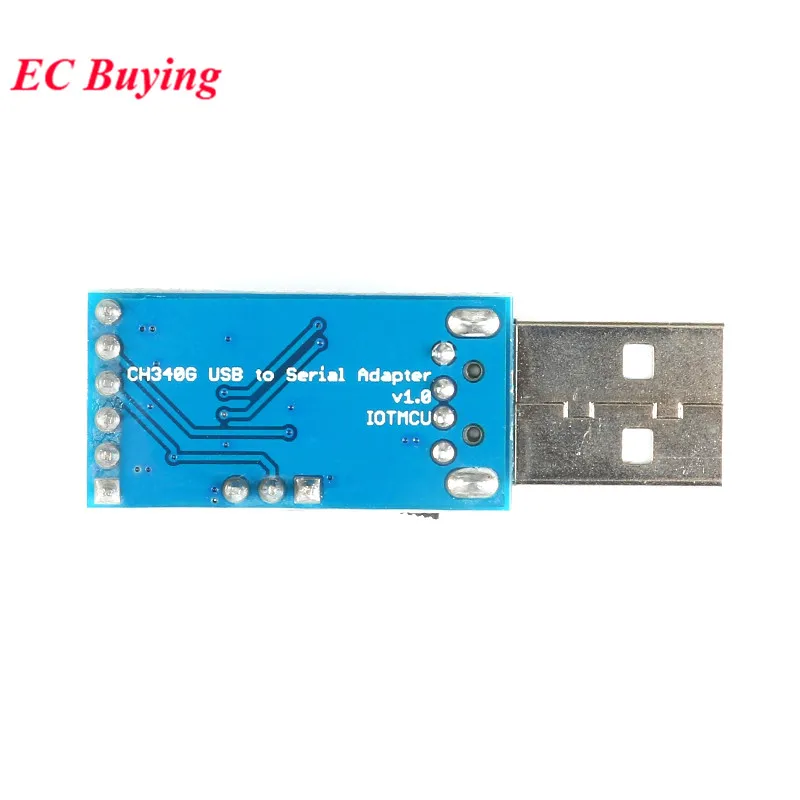

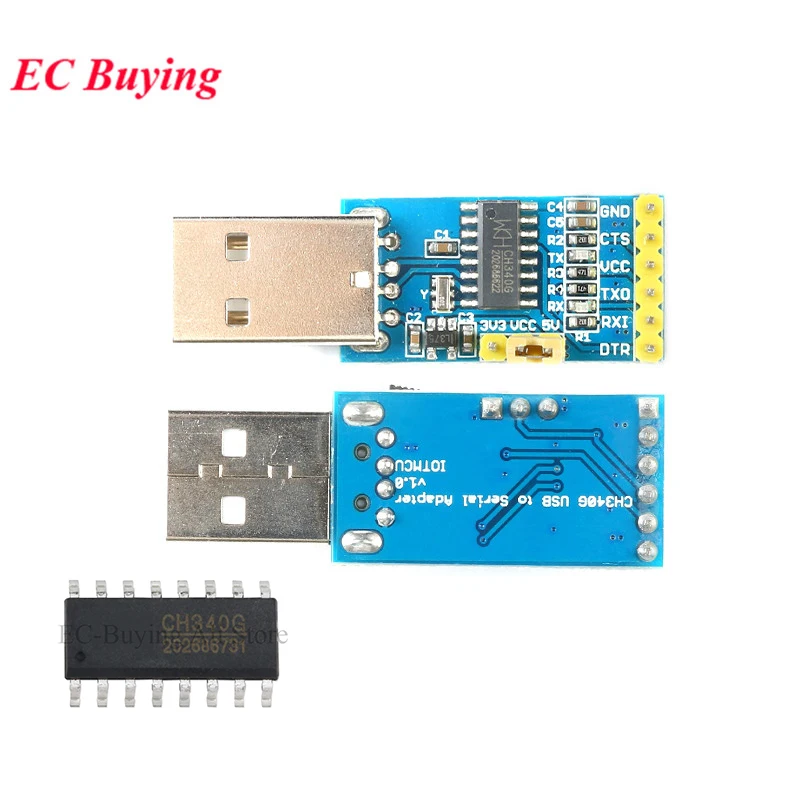

Using the original CH340G chip, this series of chips is the USB-to-TTL chip recommended by STC. It will not cause incompatibility due to different drivers/different computers. With TXD and RXD indicators, it is easy to understand whether the product is working without the instrument. It can be used to update the firmware download program for devices with TTL serial interface, and supports single-chip microcomputers that can download programs using serial port ISP.
Parameter:
1. Support mainstream versions of Windows 32/64 bit systems
2. Support Linux, MAC 32/64 bit system
3. With 3.3V and 5V power output selection jumper cap
4. Lead CTS and DTR pins
Features:
1. Support mainstream versions of Windows 32/64 bit systems
2. Support Linux, MAC 32/64 bit system
3. With 3.3V and 5V power output selection jumper cap
4. Lead CTS and DTR pins

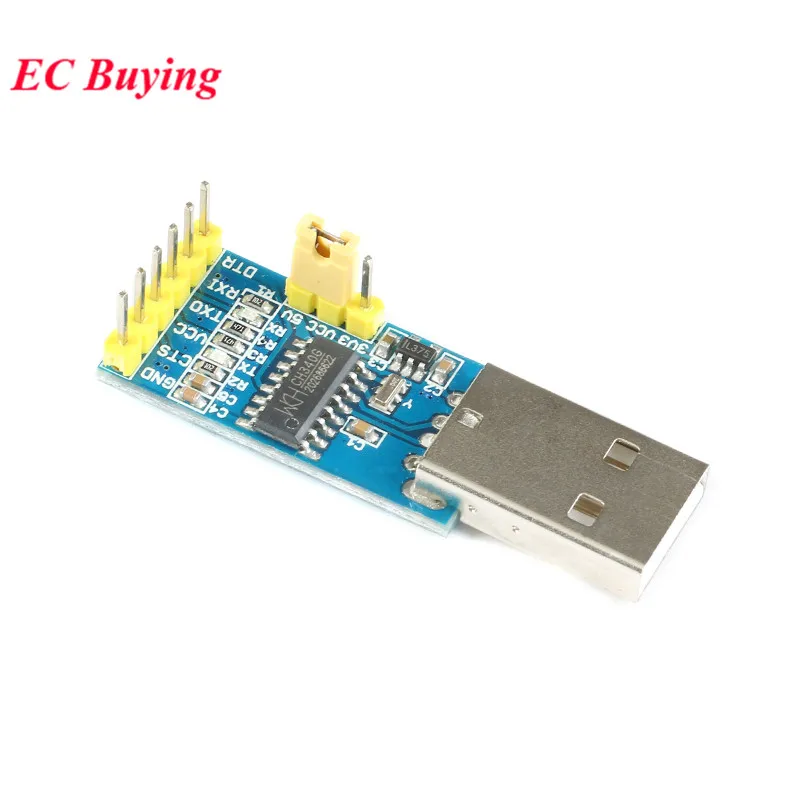

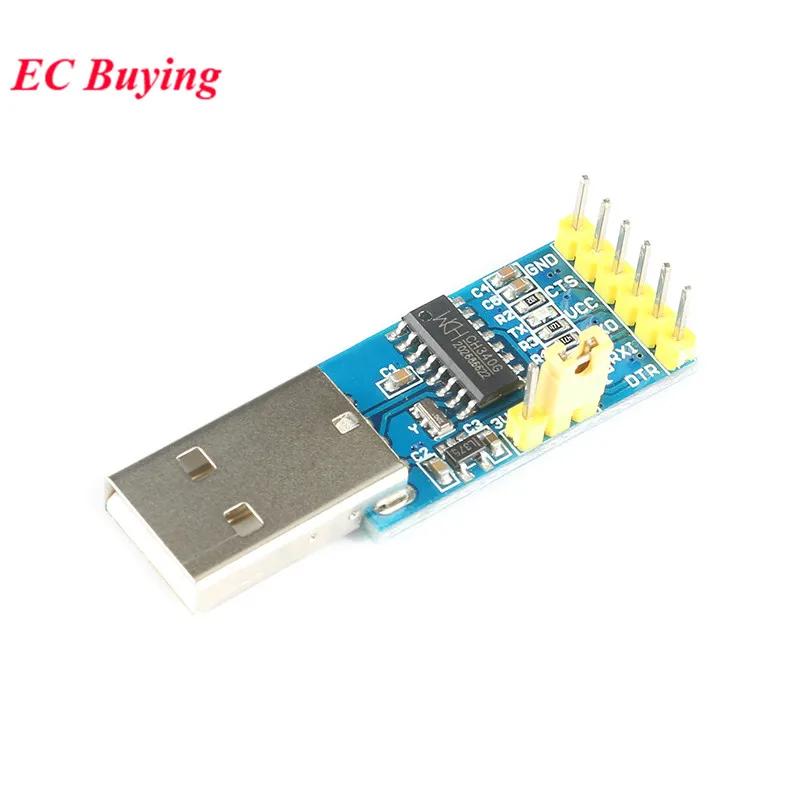

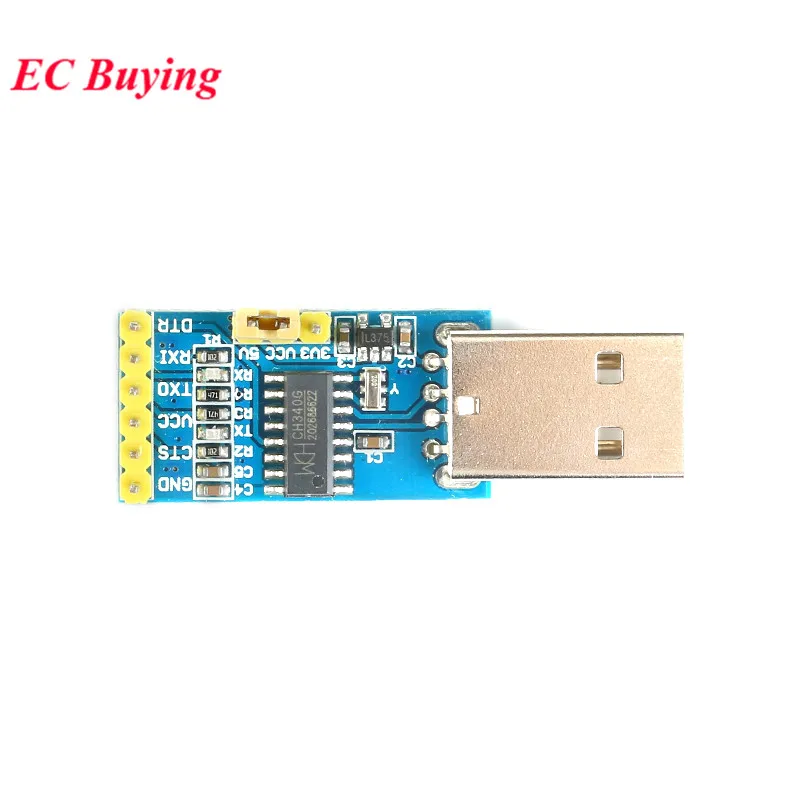

Pin interface:
VCC: 5V is output when the jumper cap jumps to VCC and 5V; 3.3V is output when the jumper cap jumps to VCC and 3.3V;
GND: Power Ground Pin
RXI: TTL serial data receiving pin
TXO: TTL serial data transmission pin
CTS: Clear To Send Clear Send
DTR: Data Terminal Ready data terminal is ready
Instructions for use:
Install the CH340 driver, the serial port number will appear in the computer device manager, short-circuit the TX and RX pins with the wires, and the computer will open the serial port assistant to verify the self-receiving data from the USB to TTL serial port.
