Best Selling Gate Motor Sliding Gate Opener 24v Infrared Safety Photocell /Infrared Sensor HS-A002
SPECIFICATIONS:
Receiver:
Power Source: 12v – 36v AC/DC
Maximum Range: 15m
Wavelength: 940nm
Modulation Frequency: Pulsed
Internal rotation system adjusted angle: 0-180 degree
Relay Contact: Potential Free 1 AMP C/O
Physical Size: 132*57*35mm
Transmitter

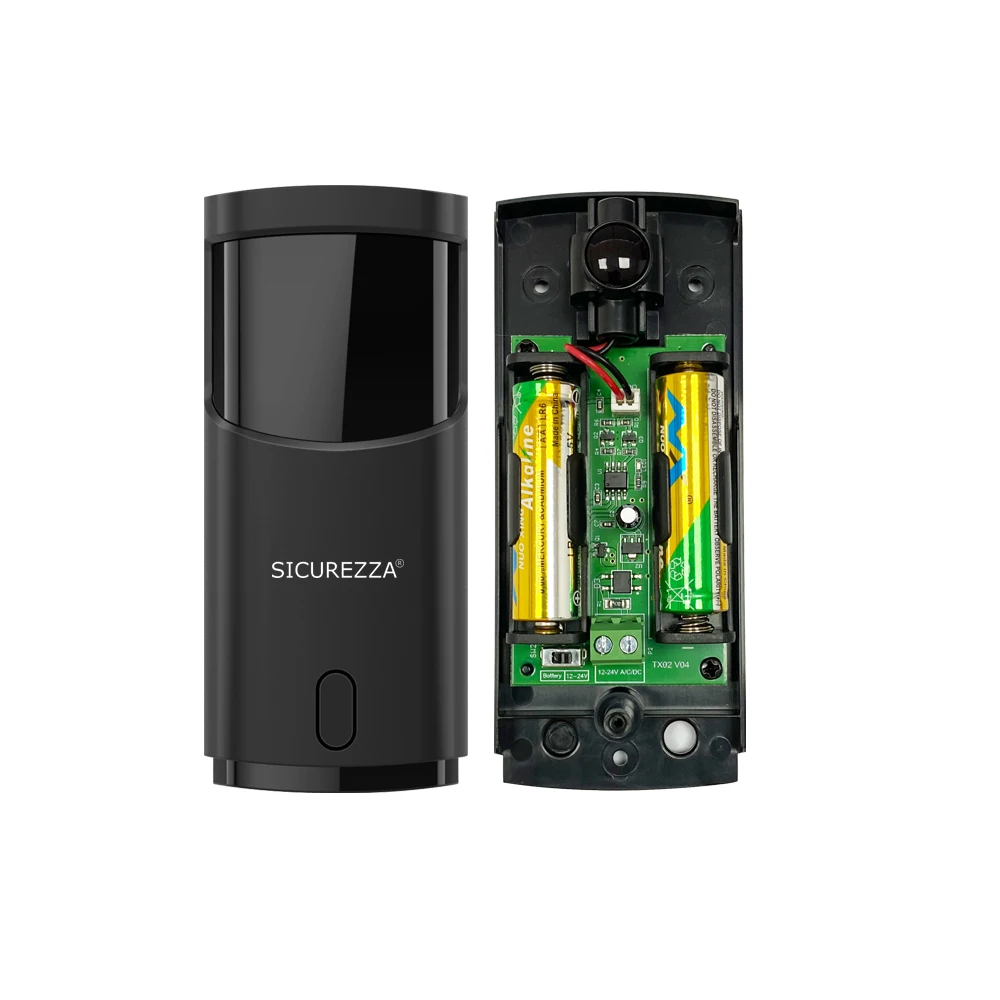

Power source: 12v – 36v AC/DC or 3V (2 x AA Alkaline Batteries)
Battery Life: approx 2 year
Receiver:
Power Source: 12v – 36v AC/DC
Maximum Range: 15m
Wavelength: 940nm
Modulation Frequency: Pulsed
Internal rotation system adjusted angle: 0-180 degree
Relay Contact: Potential Free 1 AMP C/O
Physical Size: 132*57*35mm
Transmitter
Power source: 12v – 36v AC/DC or 3V (2 x AA Alkaline Batteries)
Battery Life: approx 2 year
This Infrared Safety Photo Cell is used in automatic doors, garages, barriers, and indoor and outdoor security protection. The product uses ultra-low power consumption technology, and the battery life is more than 2 years. designed for outdoor scene applications, it has the ability to resist rain erosion and at the same time has a good ability to resist sunlight interference to avoid product failures caused by sunlight interference.
|
Specification for Infrared Safety Photo Cell
|
||
|
Model
|
HS-A002
|
|
|
Receiver Power Source
|
AC/DC 12v – 36v
|
|
|
Transmitter Power Source
|
AC/DC 12v – 36v or 3V (2 x AA Alkaline Batteries)
|
|
|
Detecting distance
|
15m
|
|
|
Modulation Frequency
|
Pulsed
|
|
|
Wave length
|
940nm
|
|
|
internal rotation system adjusted angle
|
0~180 degree
|
|
|
Battery Life
|
Approx 2 year
|
|
|
Usage
|
Gate Open/Garage Door/Automatic Door/Barrier Gate/Access Control System
|
|
|
Installation
|
Outdoor/Indoor
|
|
|
Certificate
|
CE certificated
|
|
|
Working temperature
|
-25℃~+55℃
|
|
|
Alarm Output
|
Relay output NC NO; 1A/36V Max
|
|
|
Waterproof grade
|
IP55
|
|
|
Dimension
|
132*57*35mm
|
|
Products Description
Automatic Door Safety Photocell Beam Sensor

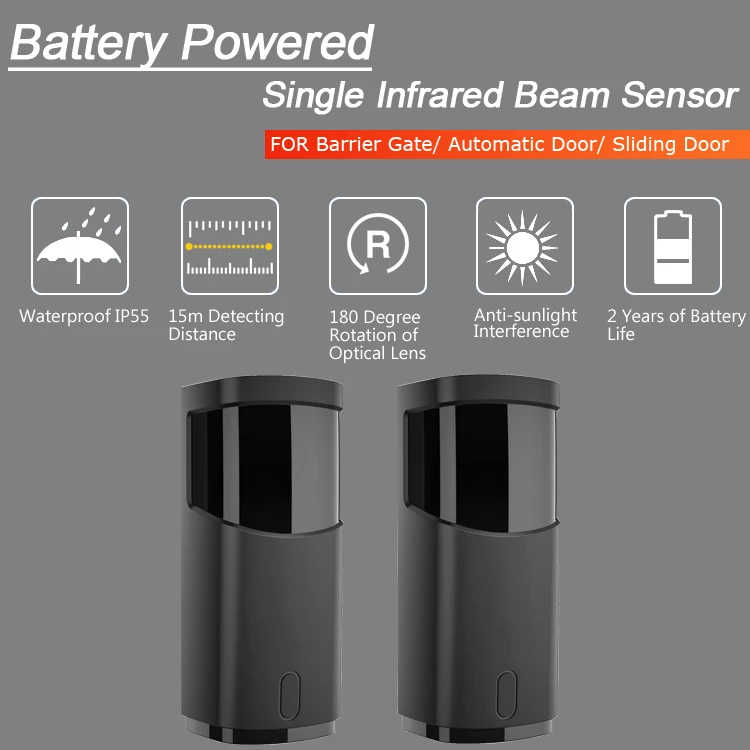

Waterproof IP55 / 15 Meters Detecting Distance / Relay Output NC/NO / Good Ability To Resist Sunlight Interference / 2 Years of Battery Life / 180 Degree Rotation of Optical Lens

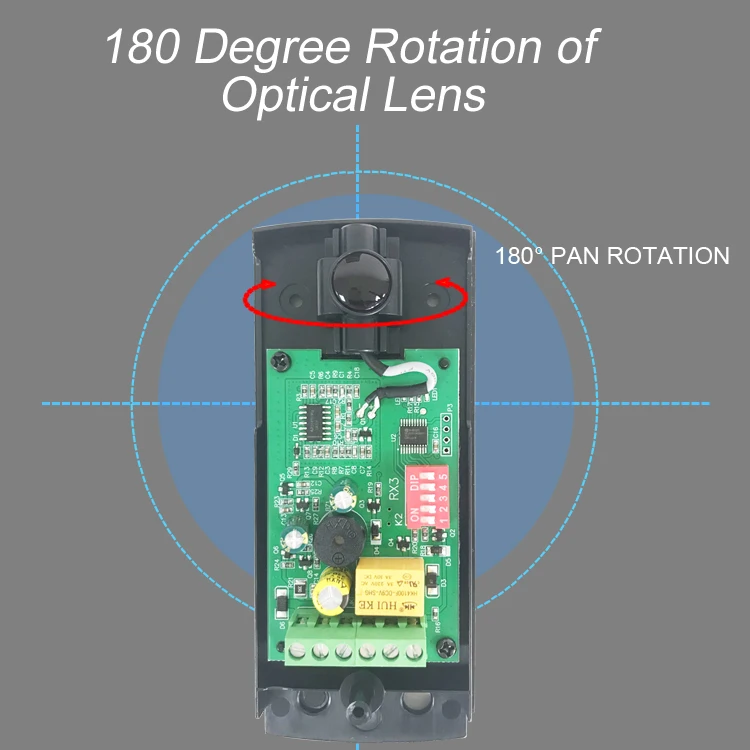

180 Degree Rotation of Optical Lens
The lens can be rotated 180 degrees left and right
Outdoor Waterproof Design
Adopt sealed waterproof design, with waterproof and moisture-proof functions suitable for indoor and outdoor installation and used in humid areas

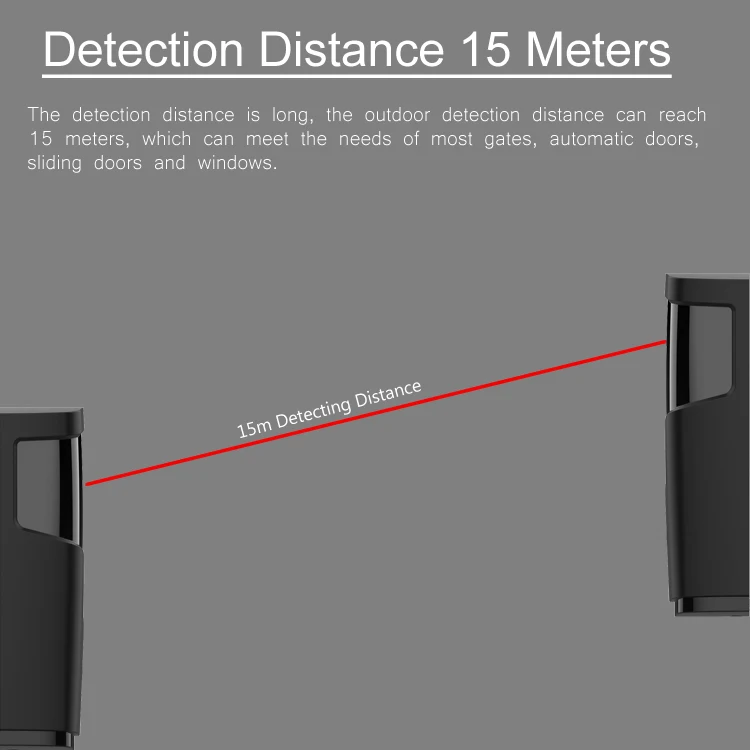

Detection Distance 15 Meters
The detection distance is long,the outdoor detection distance can reach 15 meters,which can meet the needs of most gates,automatic doors,sliding doors and windows

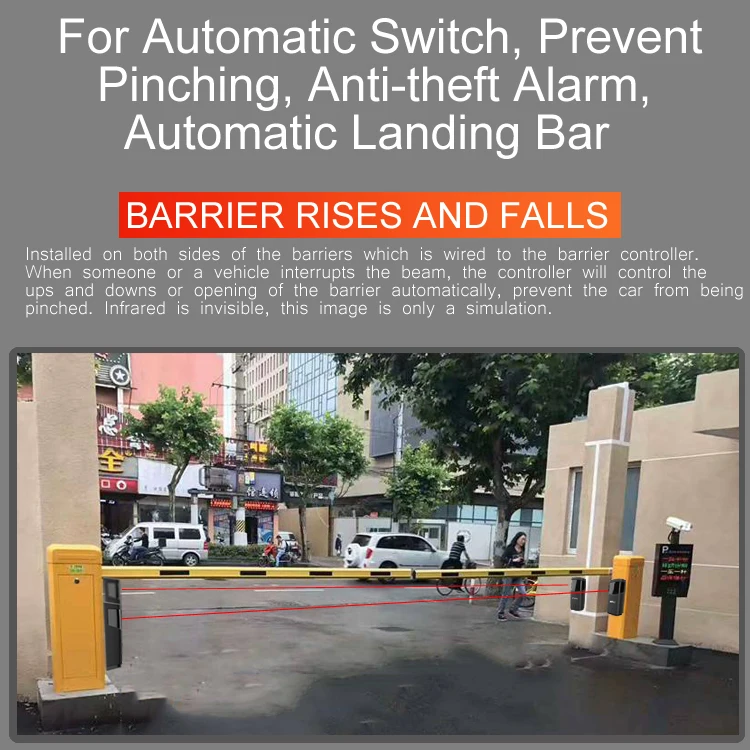

For Automatic Door,Sliding Door Switch, Anti-pinch Sensor
Installed on both sides of the door which is wired to the door controller,when someone passes by and blocks the infrared beam,the door will open automatically
