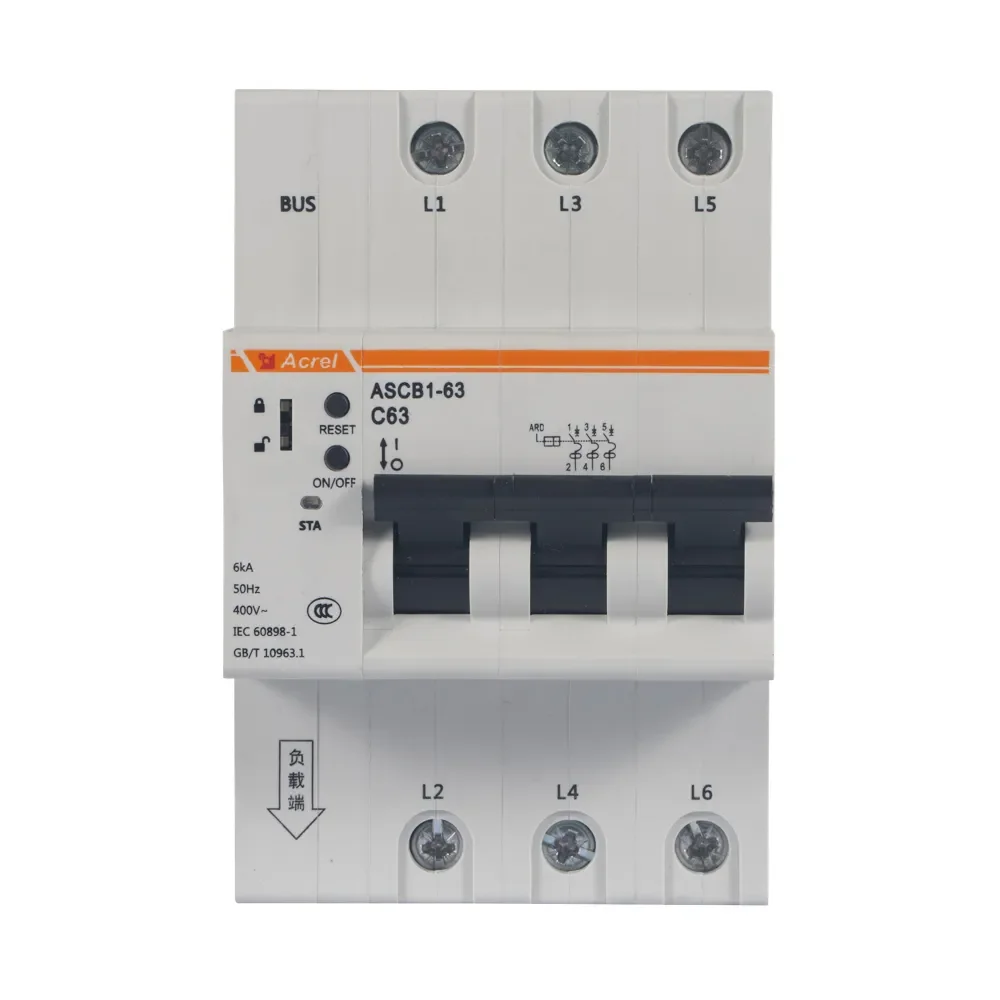

Acrel ASCB Series Three Phase Remote Control Switch 16A 32A 63A Monitored Loop for Smart Factory

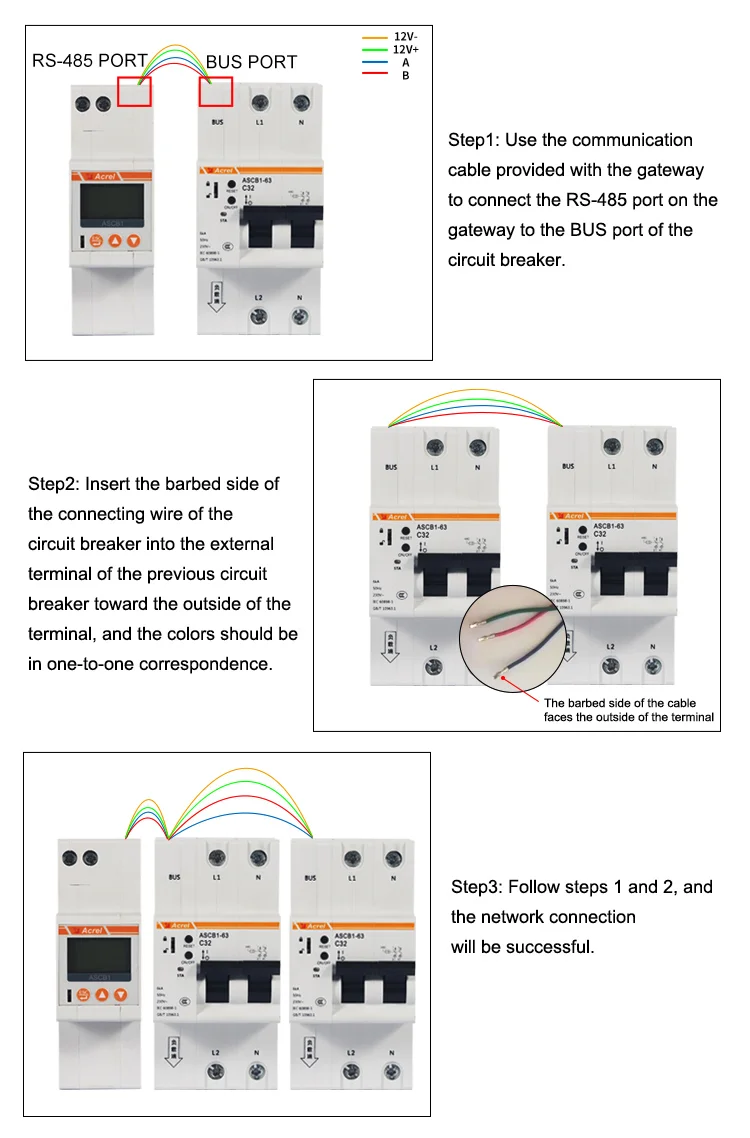

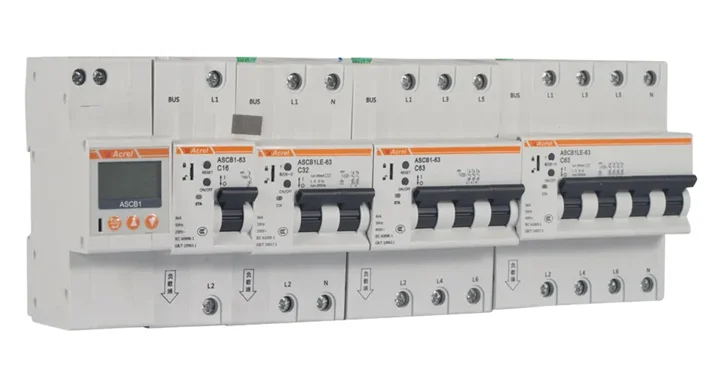

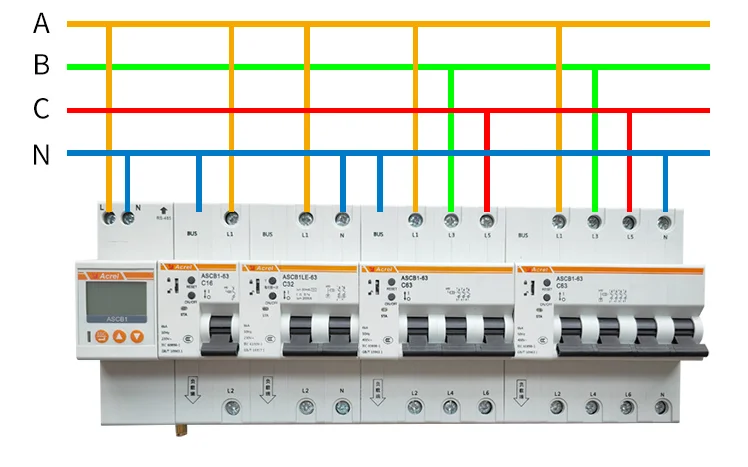

1) The device is suitable for standard 35mm rail type installation. When installing, just clip the device into the rail and fix it with a buckle . 2) According to the actual power distribution management and line laying design requirements, select and use IoT modules and electrical boxes that meet the needs. 3) The specifications of the box are assembled and installed in the order of the modules shown in the figure, and each module is   connected by a special 8PIN data cable made by the manufacturer. 4) The circuit breaker should be installed vertically. When the handle is in “/OFF”, the contacts are disconnected. When the handle moves upward, the contacts move in the closing direction.

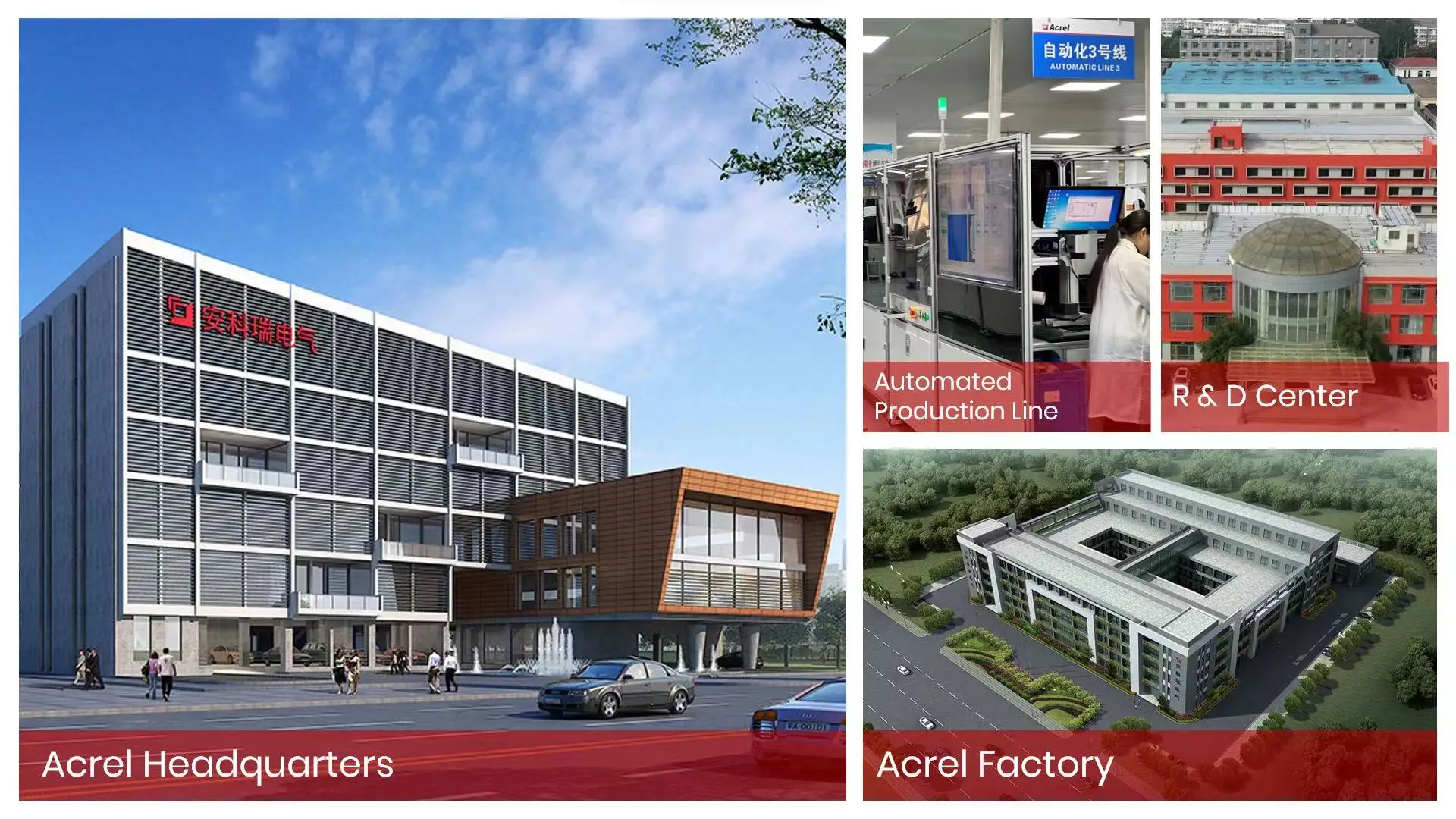

At present, the company has more than 14,000 sets of system solutions operating around the world, for users to escort efficient and safe energy use, for enterprises to save energy consumption and realize the digital construction of energy to provide data services.
